AD16 rudder: Ronstan spring & clevis pin

Post by Bogieman » Sun Dec 01, 2019 10:14 am

Jacques mentions (AD16 plans) a Ronstan spring/ clevis pin assembly to keep the rudder in the down position but there's no illustration. Any of you familiar with the set up and how it works?



terrulian
* Bateau Builder *
* Bateau Builder *
Posts: 2725
Joined: Sat Dec 07, 2013 11:29 am
Location: Marin County, CA
Contact:

Re: AD16 rudder: Ronstan spring & clevis pin

Post by terrulian » Sun Dec 01, 2019 2:31 pm

I'm guessing he means this kind of thing:
Tony

Bogieman
Very Active Poster
Very Active Poster
Posts: 1623
Joined: Wed Jun 15, 2016 12:20 pm
Location: Myrtle Beach

Re: AD16 rudder: Ronstan spring & clevis pin

Post by Bogieman » Mon Dec 02, 2019 9:40 am

terrulian wrote:
Sun Dec 01, 2019 2:31 pm
I'm guessing he means this kind of thing:
Hi Tony! That thingy looks interesting and I'm sure it'll make perfect sence once i have it in hand

terrulian
* Bateau Builder *
* Bateau Builder *
Posts: 2725
Joined: Sat Dec 07, 2013 11:29 am
Location: Marin County, CA
Contact:

Re: AD16 rudder: Ronstan spring & clevis pin

Post by terrulian » Mon Dec 02, 2019 1:49 pm

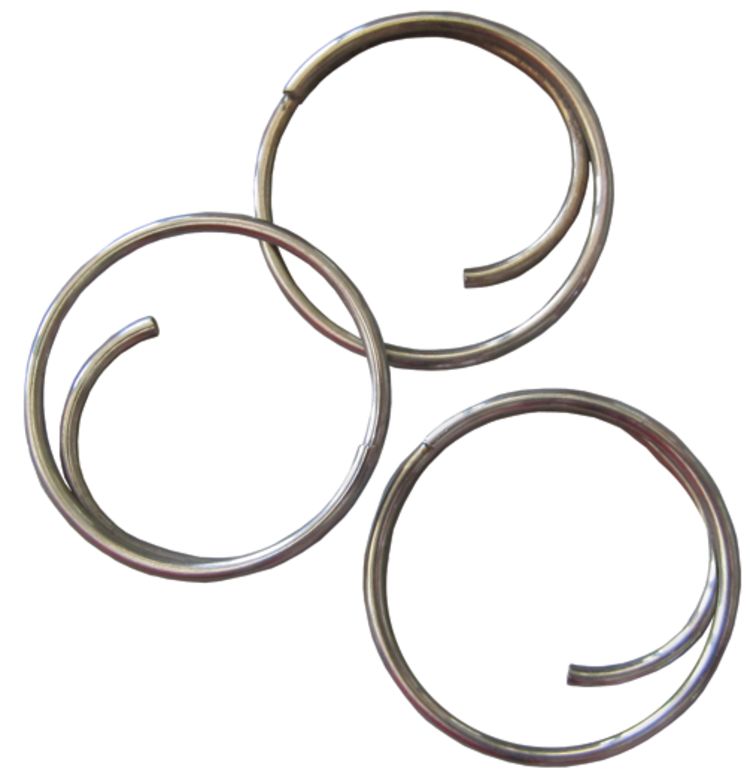

It's a clevis pin that you push through the hole, say, for example, the hole through the pintles, and then you can fold the tab at the end opposite the ring, to secure it. To release, you fold the tab back inline with the pin, and pull it out with the ring. This is much handier (although perhaps just slightly less secure) than having to fiddle with a cotter ring, often called a ring-ding, like this:
Tony

User avatar
gonandkarl
* Bateau Builder *
* Bateau Builder *
Posts: 1092
Joined: Sat Mar 16, 2013 10:25 am
Location: Wels,Austria,Europe

Re: AD16 rudder: Ronstan spring & clevis pin

Post by gonandkarl » Mon Dec 02, 2019 1:53 pm

Hi Bogey,
I was also puzzled what was meant with this ronstan pin, but when I bought my 3 piece rudder fittings I found out that there was also a small strip of stainless steel with it which needs to e srewed to the transom and prevents the rudder to move up. When one wants to remove the rudder I must just press the strip with a finger towards the transom and I can lift the rudder up. Here is a picture of the fittings and it is in the high position.


If You also get similar 3 piece pintles ( I think is the correct word for a rudder fitting ) then you have the advantage to attach the rudder one pintle higher in shallow water.
Maybe this helps you a bit.

Greetings from Karl
All pictures of Micro Petrel AD14 and FS13 :

http://gallery.bateau2.com/index.php?cat=87433

Bogieman
Very Active Poster
Very Active Poster
Posts: 1623
Joined: Wed Jun 15, 2016 12:20 pm
Location: Myrtle Beach

Re: AD16 rudder: Ronstan spring & clevis pin

Post by Bogieman » Mon Dec 02, 2019 3:18 pm

Thank you Tony and Karl! That answers my question. I also plan to attach a small tether to the rudder so I won't lose it if it ever becomes detached.

terrulian
* Bateau Builder *
* Bateau Builder *
Posts: 2725
Joined: Sat Dec 07, 2013 11:29 am
Location: Marin County, CA
Contact:

Re: AD16 rudder: Ronstan spring & clevis pin

Post by terrulian » Mon Dec 02, 2019 10:45 pm

Pintle is the one with the pin; gudgeon is the one with the hole. In some boats the pintle is on the rudder, sometimes it's on the transom.
Commonly, they are offset slightly so that when you're in the water and things are moving around, you can get one in and then maneuver the second.
Tony

User avatar
gonandkarl
* Bateau Builder *
* Bateau Builder *
Posts: 1092
Joined: Sat Mar 16, 2013 10:25 am
Location: Wels,Austria,Europe

Re: AD16 rudder: Ronstan spring & clevis pin

Post by gonandkarl » Tue Dec 03, 2019 12:58 pm

Thanks Tony like You described it I can remember at last the two words pintle and gudgeon.
All pictures of Micro Petrel AD14 and FS13 :

http://gallery.bateau2.com/index.php?cat=87433
